General

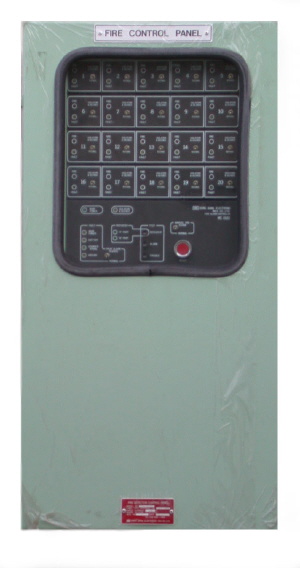

The MC1020 fire control and indicator panel is intended for marine use and completes
with integral power changeover unit and standby power supply designed with its
ancillary units to meet marine equipments.
The high degree of component reliability and uncomplicated circuit design employed
in this unit combine to produce an extremely low failure rate in service.
Features
1. Up to twenty detection zones.
2. Two wire detector circuits.
3. Smoke, heat, flame and manual call points may be mixed on the same circuit.
4. Fault monitoring of detector circuits, sounder wiring, power supply and ground.
5. Adjustable alarm output.
DC24V alarm output can be delayed upto thirty seconds to conform with I.M.O.
Regulations.
6. Detector circuits can be put into isolation mode up to 30 minutes.
7. Self test function of fault and alarm conditions.
8. Internal emergency battery provided.
9. Interfaces directly with up to two MR3020 20 zone repeater panel.
Technical Specification
The control panel is normally mounted onto a bulkhead and its flush mounting
type is also available.
Electrical
The ship's 110/220 AC supply automatically switcjing to the ship's 24VDC supply
in the event of mains failure.
Dimension, Weight & Color
Dimension : 860mm X 440mm X 160mm
Weight : About 28Kg
Color : 7.5BG 7/2
Environmental
Operating Temperature -10?to +55?
Storage Temperature -25?to +70?
Humidity : 95% RH non-condensing
Output Facilities
Zonal alarm output is a voltage free changeover contact for each zone rated
at 30A at dc24V.
One general alarm output is provided.
Repeater outputs.
Relay contacts are provided giving a "switched to common" output.
The common may be connected to the controller.
a) Common fire
b) Zone test / Isolate
c) One output per zone
d) Common fault changeover using the same "switched to common" a),b)
& c) normally open
Ancillary Equipments
Repeater Panel MR3020 (W:440mm L:610mm D:160mm)
