General

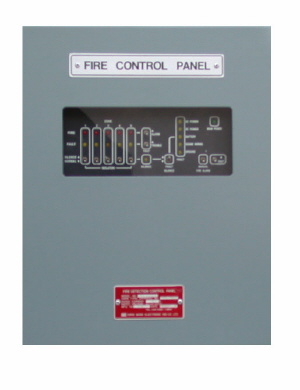

The MC1005 fire control and indicator panel is intended for marine use and completes
with integral power changeover unit and standby power supply designed with its
ancillary units to meet marine equipments.
The high degree of component reliability and uncomplicated circuit design employed
in this unit combine to produce an extremely low failure rate in service.
Features
1. Up to five detection zones.
2. Two wire detector circuits.
3. Smoke, heat, flame and manual call points may be mixed on the same circuit.
4. Fault monitoring of detector circuits, alarm sounder wiring, power supply
and ground.
5. Alarm output signal can be delayed up to 64 seconds.
6. Detector circuits can be put into isolation mode up to 64minutes.
7. Self test function of fault and alarm conditions.
8. Internal emergency battery provided.
Technical Specification
The control panel is normally mounted onto a bulkhead and its flush mounting
type is also available.
Electrical
The ship's 110/220 AC supply automatically switching to the ship's 24VDC supply
in the event mains failure.
Dimension, Weight & Color
Dimension : 420mm X 330mm X 100mm
Weight : about 11.2kg
Color : 5Y7-1
Environmental
Operating Temperature : -10?to +55?
Storage Temperature : -25?to +70?
Humidity : 95% RH Non-Condensing
Output Facilities
One sounder output rated at DC 1A.
One general alarm output is provided.
One mic holding contact is provided.
-When mic switch turned on, fire alarm sounder is isolated.
