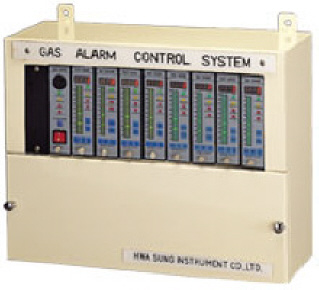

MULTI-CHANNEL GAS CONTROLLER ( SK-2000 )
|
|
 |
SK-2000 series control units adopt a high performance A/D converter and a micro processor for various functions.
SK-2000 is composed of housing, one common alarm unit and several multi-channel control units.
Each multi-channel control unit is connected to its sensing part.
SK-2000 series is encapsulated in DIN type case.
These are mounted onto a wall and also panel mount type is available.
SK-2000 series has FND digital display(PV value) function and LED bar graphic display(PV and alarm set value) function, it also has two instant alarm(H/HH, H/L, L/LL) and trouble alarm.
Features
* Digital or bar graphic display.
* Interfaced with other gas breaker, rotating lamp, fan etc.
* 4-20mA.DC output contact provided for recorder(Option)
* Interfaced with monitoring system(PC, Gas Vision) through RS-485 digital signal(Option).
* Audible and visible warning for alarm and trouble condition.
* Remote alarm reset.
* Easy setting of several functions by user.
* Easy maintenance and system expansion by using slot type
* Type : Wall Mounting
* Operating Voltage : AC110 /220V DC24V
* Material : Steel
* Ambient ConditionTemperature: -20℃ to 50℃
* Humidity : UpTo 95% RH Non-Condensing
* Enclosure : IP23
* Dimension : 320mm X 360mm X 190mm |
|
|
|
